PS-1930
HYBRID – PRO SERIES
Electric Scissor Lift

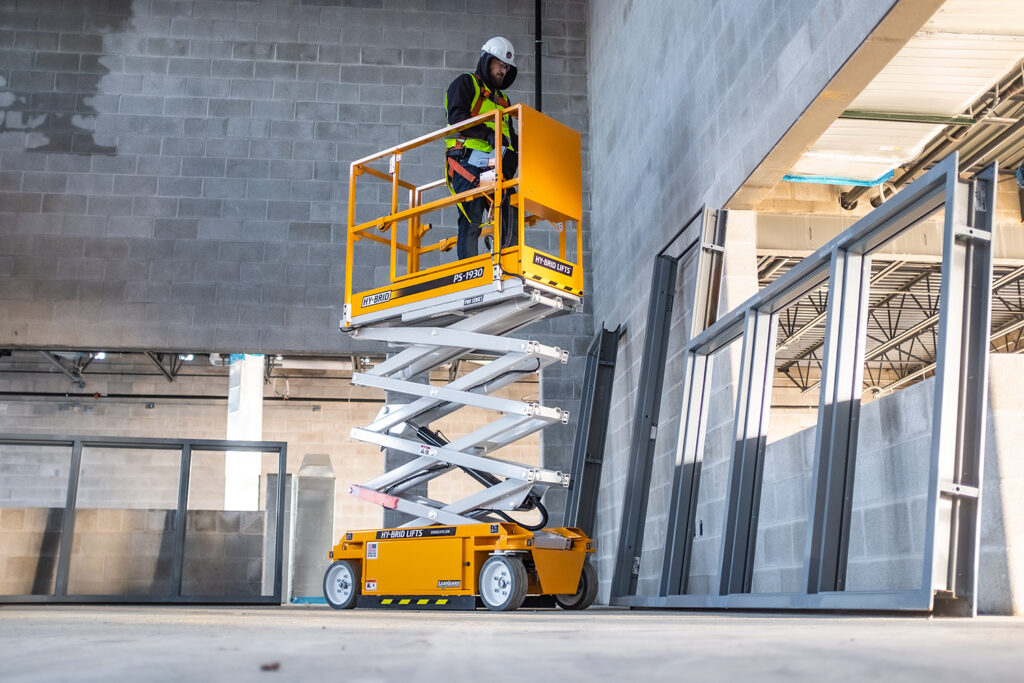

The Hy-Brid Lifts PS-1930 electric scissor lift is proof that less is more. This Pro Series model can reach working heights up to 25 ft while weighing less than 2,000 lbs, allowing operators to access more applications and types of flooring, including green concrete.
Key Features
Working height up to 25 ft
Platform capacity up to 650 lbs
Weighs less than 2,000 lbs
EZ-Glide slide out extension deck
Non-marking wheels
2-year parts & labor warranty
5-year structural warranty
ANSI A92.20 compliant
CSA B354.6:17 compliant
EN-280:2013+A1:2015 compliant
Options
LeakGuard™ Fluid Containment System
Pipe rack
Flashing beacon
AGM batteries
Inverter
All motion alarm
| SPECIFICATIONS | US | Metric |
|---|---|---|
| Working Height (1 Person Indoor) | 24.4 ft | 7.4m |
| Working Height (2 Person Indoor/1 Person Outdoor) | 18 ft | 5.5m |
| Platform Height Maximum (1 Person Indoor) | 18.4 ft | 5.6 m |
| Platform Height Maximum (2 Person Indoor/1 Person Outdoor) | 12 ft | 3.7 m |
| Platform Height Minimum | 31 in | 78.7 cm |
| Ground Clearance Elevated | 0.3 in | 0.8 cm |
| Ground Clearance Lowered | 3 in | 7.6 cm |
| Overall Length w/ Step | 69.5 in | 176.5 cm |
| Overall Width | 30 in | 76.2 cm |
| Stowed Height | 74.3 in | 188.7 cm |
| Platform Length | 57.8 in | 146.8 cm |
| Platform Width | 21.8 in | 55.4 cm |
| Slide Out Extension Deck Length | 30 in | 76.2 cm |
| Tires (Front/Rear) | 12/12 in | 30.5/30.5 cm |
| PERFORMANCE | US | Metric |
| Rated Occupancy (Indoor/Outdoor) | 2/1 Person(s) | 2/1 Person(s) |
| Platform Capacity | 650 lbs | 294.8 kg |
| Slide Out Extension Deck Capacity | 250 lbs | 113.4 kg |
| Gradeability | 30% | 30% |
| Inside Turn Radius | 8 in | 20.3 cm |
| Drive Speed Elevated (Proportional) | 0.6 mph | 0.3 m/s |
| Drive Speed Lowered (Proportional) | 2.4 mph | 1.1 m/s |
| Lift Speed (Up/Down) | 28/28 sec | 28/28 sec |
| Power Source | 24V DC | 24V DC |
| FLOOR LOADING | US | Metric |
| Weight | 1985 lbs | 900.4 kg |
| Wheel Load at Minimum Capacity | 107 psi | 737.7 kPa |
| Wheel Load at 500 lbs Capacity | 122.2 psi | 842.5 kPa |
| Wheel Load at Maximum Capacity | 126.7 psi | 873.6 kPa |
