ZT-1630
HYBRID – ZERO-TURN
ZERO-TURN SCISSOR LIFT

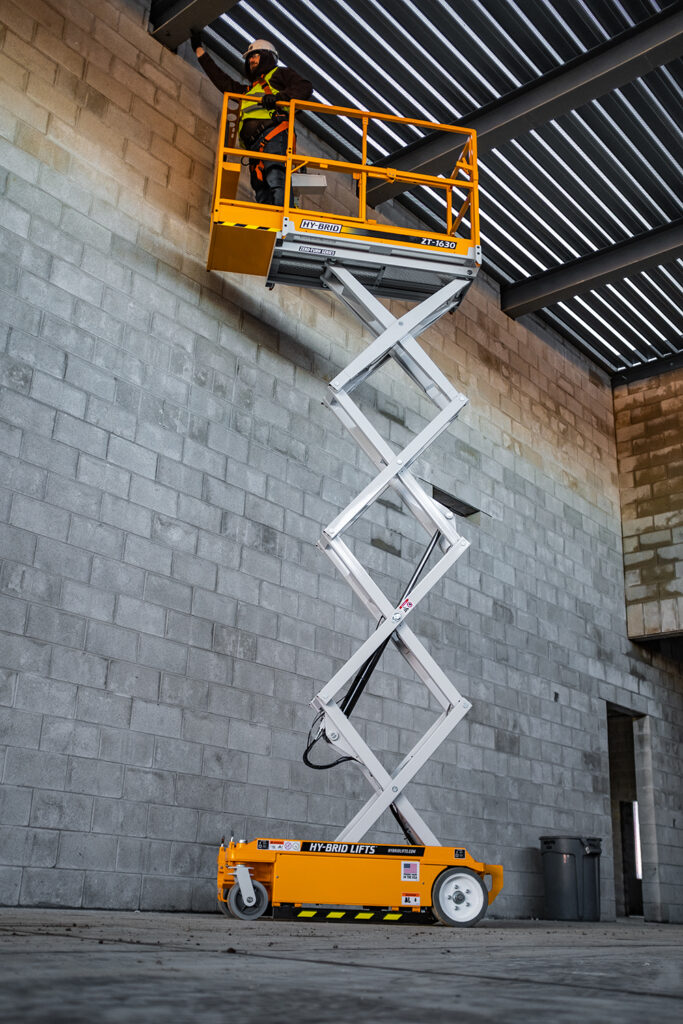

The Hy-Brid Lifts ZT-1630 electric scissor lift keeps operators working at height for longer. This Zero-Turn Series lift offers a compact design, zero degree turn radius, and fully proportional drive and lift for maximum maneuverability in confined spaces.
Key Features
Working height up to 22 ft
Platform capacity up to 650 lbs
Zero-turn radius
Low floor load pressures
Total Control Drive System
EZ-Glide slide out extension deck
Non-marking wheels
2-year parts & labor warranty
5-year structural warranty
ANSI A92.20 compliant
CSA B354.6:17 compliant
Options
Flashing beacon
Inverter
All motion alarm
| SPECIFICATIONS | US | Metric |
|---|---|---|
| Working Height (1 Person Indoor) | 22 ft | 6.7m |
| Platform Height Maximum (1 Person Indoor) | 16 ft | 4.9 m |
| Platform Height Minimum | 24 in | 61 cm |
| Ground Clearance Elevated | 0.5 in | 1.3 cm |
| Ground Clearance Lowered | 3.6 in | 9.1 cm |
| Overall Length w/ Step | 62 in | 157.5 cm |
| Overall Width | 30 in | 76.2 cm |
| Stowed Height | 68 in | 172.7 cm |
| Platform Length | 53 in | 134.6 cm |
| Platform Width | 24 in | 61 cm |
| Slide Out Extension Deck Length | 30 in | 76.2 cm |
| Tires (Front/Rear) | 8/12 in | 20.3/30.5 cm |
| PERFORMANCE | US | Metric |
| Rated Occupancy (Indoor) | 1 Person | 1 Person |
| Platform Capacity | 650 lbs | 294.8 kg |
| Slide Out Extension Deck Capacity | 250 lbs | 113.4 kg |
| Gradeability | 25% | 25% |
| Inside Turn Radius | Zero | Zero |
| Drive Speed Elevated (Proportional) | 0.9 mph | 0.4 m/s |
| Drive Speed Lowered (Proportional) | 2.7 mph | 1.2 m/s |
| Lift Speed (Up/Down) | 18/18 sec | 18/18 sec |
| Power Source | 24V DC | 24V DC |
| FLOOR LOADING | US | Metric |
| Weight | 1785 lbs | 809.7 kg |
| Wheel Load at Minimum Capacity | 143.9 psi | 992.1 kPa |
| Wheel Load at 500 lbs Capacity | 174.4 psi | 1202.4 kPa |
| Wheel Load at Maximum Capacity | 186 psi | 1282.4 kPa |
