ZT-1230
HYBRID – ZERO-TURN
ZERO-TURN SCISSOR LIFT

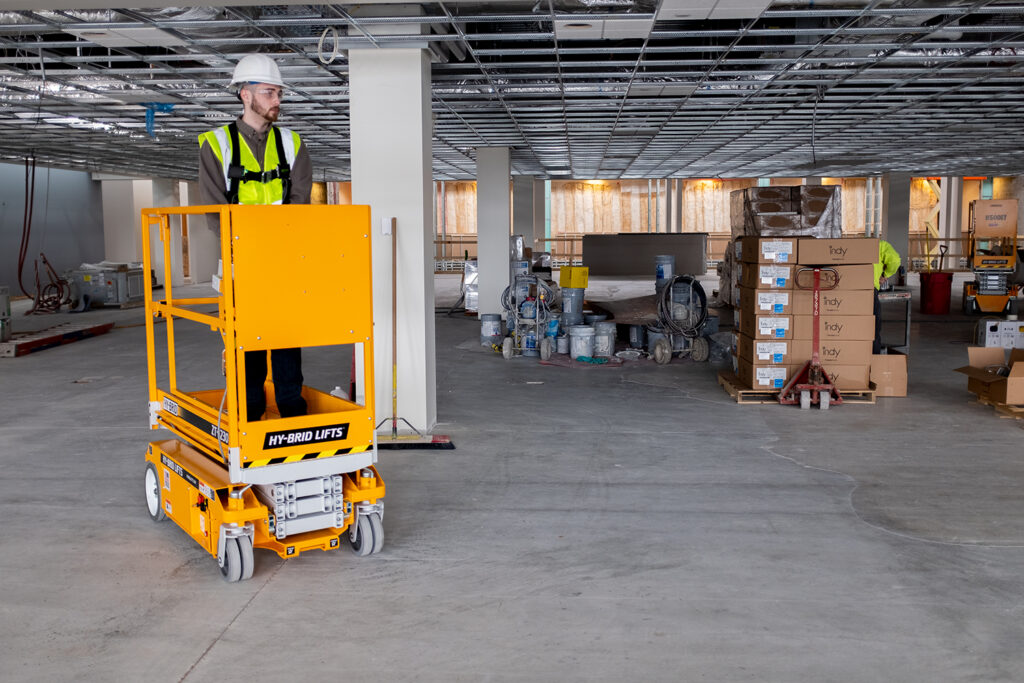

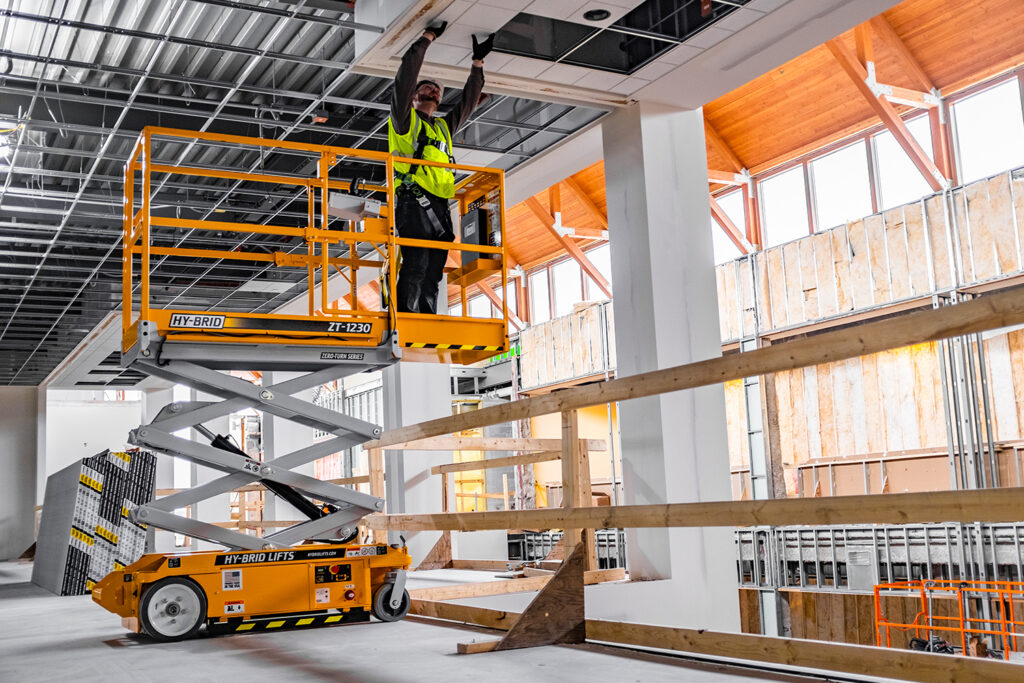

Spend less time positioning your scissor lift and more time working at height with the Hy-Brid Lifts ZT-1230 electric scissor lift. This Zero-Turn Series model features a zero degree turn radius, proportional controls, and a point-and-go drive style to smoothly navigate complex jobsites.
Key Features
- Working height up to 18 ft
- Platform capacity up to 650 lbs
- Zero-turn radius
- Low floor load pressures
- Total Control Drive System
- EZ-Glide slide out extension deck
- Non-marking wheels
- 2-year parts & labor warranty
- 5-year structural warranty
- ANSI A92.20 compliant
- CSA B354.6:17 compliant
Options
- Flashing beacon
- Inverter
- All motion alarm
SPECIFICATIONS
Working Height (1 Person Indoor)
Platform Height Maximum (1 Person Indoor)
Platform Height Minimum
Ground Clearance Elevated
Ground Clearance Lowered
Overall Length w/ Step
Overall Width
Stowed Height
Platform Length
Platform Width
Slide Out Extension Deck Length
Tires (Front/Rear)
PERFORMANCE
Rated Occupancy (Indoor)
Platform Capacity
Slide Out Extension Deck Capacity
Gradeability
Inside Turn Radius
Drive Speed Elevated (Proportional)
Drive Speed Lowered (Proportional)
Lift Speed (Up/Down)
Power Source
FLOOR LOADING
Weight
Wheel Load at Minimum Capacity
Wheel Load at 500 lbs Capacity
Wheel Load at Maximum Capacity
US
18 ft
12 ft
21 in
0.5 in
3.6 in
62 in
30 in
65 in
53 in
24 in
30 in
8/12 in
US
1 Person
650 lbs
250 lbs
25%
Zero
0.9 mph
2.7 mph
18/18 sec
24V DC
US
1675 lbs
134.9 psi
166.6 psi
177.5 psi
Metric
5.5m
3.7 m
53.3 cm
1.3 cm
9.1 cm
157.5 cm
76.2 cm
165.1 cm
134.6 cm
61 cm
76.2 cm
20.3/30.5 cm
Metric
1 Person
294.8 kg
113.4 kg
25%
Zero
0.4 m/s
1.2 m/s
18/18 sec
24V DC
Metric
759.8 kg
930.1 kPa
1148.7 kPa
1223.8 kPa
