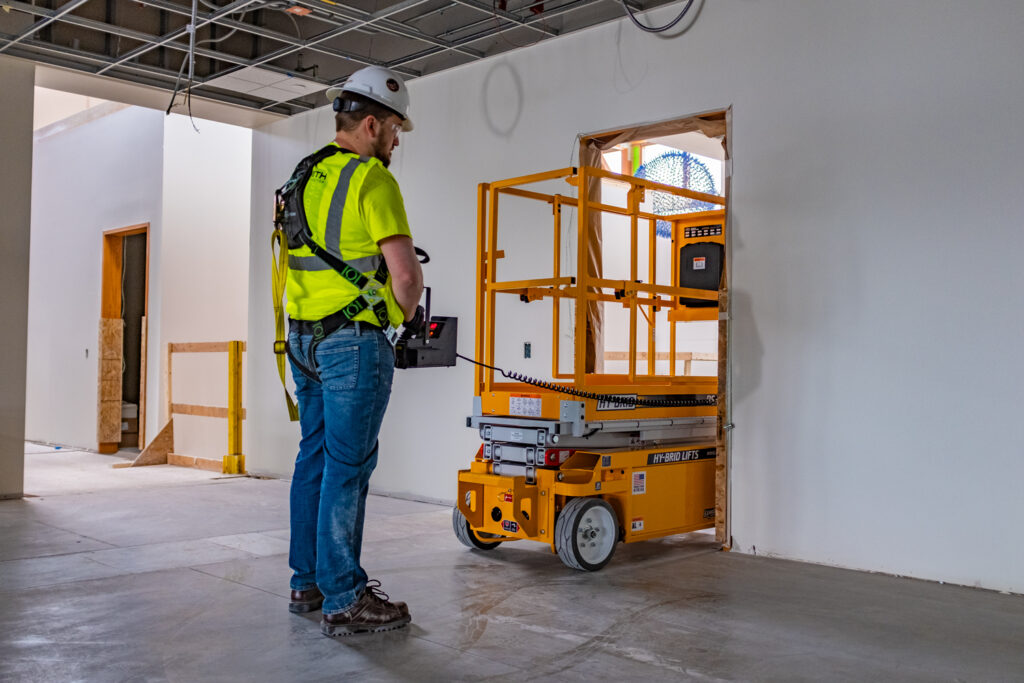

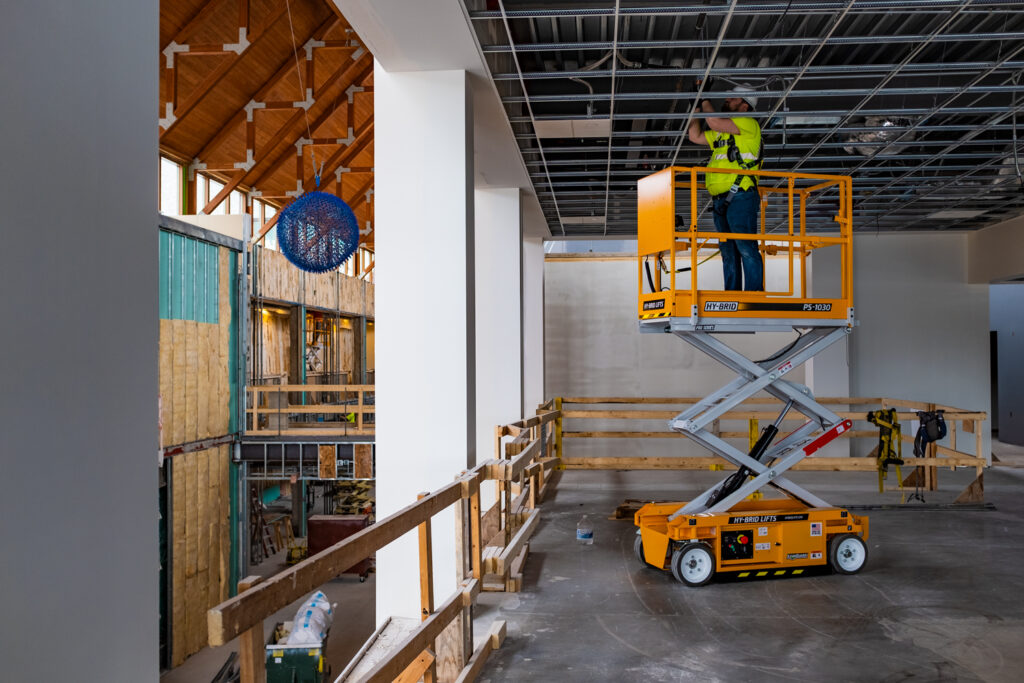

PS-1030
HYBRID – PRO SERIES
Electric Scissor Lift
Complete projects on time and under budget with the Hy-Brid Lifts PS-1030. Not only is this compact electric scissor lift part of our Pro Series, but the PS-1030 also offers a platform capacity of 800 lbs so operators can elevate more tools and materials in one trip.
Key Features
Working height up to 16 ft
Platform capacity up to 800 lbs
Low floor load pressures
EZ-Glide slide out extension deck
Non-marking wheels
2-year parts & labor warranty
5-year structural warranty
ANSI A92.20 compliant
CSA B354.6:17 compliant
EN-280:2013+A1:2015 compliant
Options
LeakGuard™ Fluid Containment System
Pipe rack
Flashing beacon
AGM batteries
Inverter
All motion alarm
| SPECIFICATIONS | US | Metric |
|---|---|---|
| Working Height (1 Person Indoor) | 16 ft | 4.9m |
| Working Height (2 Person Indoor/1 Person Outdoor) | 16 ft | 4.9m |
| Platform Height Maximum (1 Person Indoor) | 10 ft | 3 m |
| Platform Height Maximum (2 Person Indoor/1 Person Outdoor) | 10 ft | 3 m |
| Platform Height Minimum | 25 in | 63.5 cm |
| Ground Clearance Elevated | 0.3 in | 0.8 cm |
| Ground Clearance Lowered | 3 in | 7.6 cm |
| Overall Length w/ Step | 69.5 in | 176.5 cm |
| Overall Width | 30 in | 76.2 cm |
| Stowed Height | 68.3 in | 173.5 cm |
| Platform Length | 57.8 in | 146.8 cm |
| Platform Width | 21.8 in | 55.4 cm |
| Slide Out Extension Deck Length | 30 in | 76.2 cm |
| Tires (Front/Rear) | 12/12 in | 30.5/30.5 cm |
| PERFORMANCE | US | Metric |
| Rated Occupancy (Indoor/Outdoor) | 2/1 Person(s) | 2/1 Person(s) |
| Platform Capacity | 800 lbs | 362.9 kg |
| Slide Out Extension Deck Capacity | 250 lbs | 113.4 kg |
| Gradeability | 30% | 30% |
| Inside Turn Radius | 8 in | 20.3 cm |
| Drive Speed Elevated (Proportional) | 0.7 mph | 0.3 m/s |
| Drive Speed Lowered (Proportional) | 2.4 mph | 1.1 m/s |
| Lift Speed (Up/Down) | 28/28 sec | 28/28 sec |
| Power Source | 24V DC | 24V DC |
| FLOOR LOADING | US | Metric |
| Weight | 1500 lbs | 680.4 kg |
| Wheel Load at Minimum Capacity | 82.2 psi | 566.8 kPa |
| Wheel Load at 500 lbs Capacity | 100.8 psi | 695 kPa |
| Wheel Load at Maximum Capacity | 112 psi | 772.2 kPa |
