PUSH-AROUND SERIES
PA-1030
ADDED SAFETY
Take safety seriously with the Push-Around Series. These manual scissor lifts have extra precautions to drastically reduce the risk of falls.
REDUCE FATIGUE
Push-Around Series work platforms eliminate worker strain and fatigue from repetitively climbing ladders and scaffolding.
LARGE WORK PLATFORM
These compact manlifts offer significantly more workspace than ladders, plus dedicated storage for tools and materials.
2 Push-Around Scissor Lift

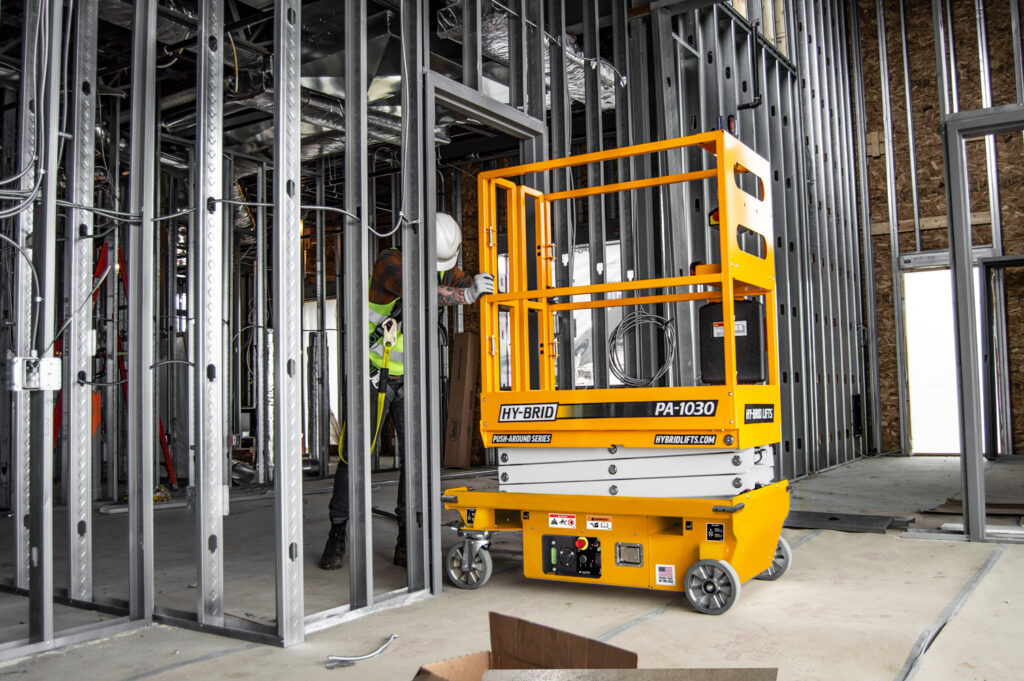

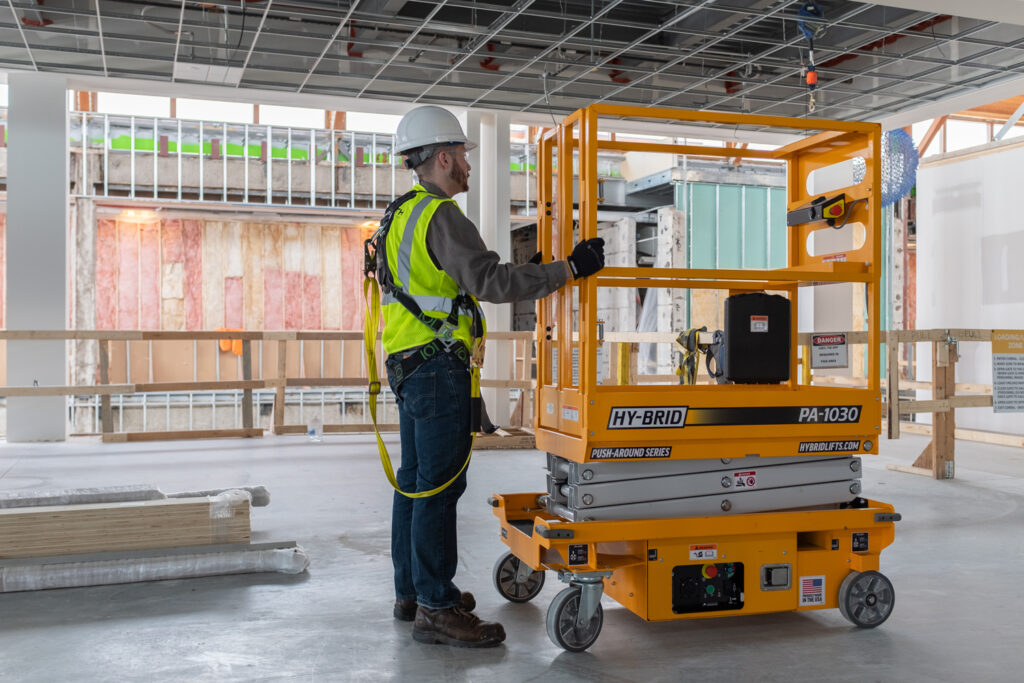

The Hy-Brid Lifts PA-1030 manlift eliminates operator fatigue from repeatedly climbing ladder rungs and scaffolding. As part of the Push-Around Series, this scissor lift offers a compact footprint and easy maneuverability on jobsites with tight spaces.
Key Features
- Working height up to 16 ft
- Platform capacity up to 530 lbs
- Low floor load pressures
- Full height saloon-style entry gate
- Non-marking wheels
- 2-year parts & labor warranty
- 5-year structural warranty
- ANSI A92.20 compliant
- CSA B354.6:17 compliant
- EN-280:2013+A1:2015 compliant
Options
- 110V power-to-platform
- Flashing beacon
- AGM batteries
- Inverter
SPECIFICATIONS
Working Height (1 Person Indoor)
Platform Height Maximum (1 Person Indoor)
Platform Height Minimum
Ground Clearance Lowered
Overall Length
Overall Width
Stowed Height
Platform Length
Platform Width
Tires (Front/Rear)
PERFORMANCE
Rated Occupancy (Indoor)
Platform Capacity
Inside Turn Radius
Lift Speed (Up/Down)
Power Source
FLOOR LOADING
Weight
Wheel Load at Minimum Capacity
Wheel Load at 500 lbs Capacity
Wheel Load at Maximum Capacity
US
16 ft
10 ft
25.2 in
2.6 in
51.3 in
29.8 in
68.7 in
40.9 in
20.5 in
8/8 in
US
1 Person
530 lbs
Zero
18/20 sec
12V DC
US
893 lbs
315 psi
369.6 psi
372.1 psi
Metric
4.9m
3 m
64 cm
6.6 cm
130.3 cm
75.7 cm
174.5 cm
103.9 cm
52.1 cm
20.3/20.3 cm
Metric
1 Person
240.4 kg
Zero
18/20 sec
12V DC
Metric
405.1 kg
2171.9 kPa
2548.3 kPa
2565.5 kPa
